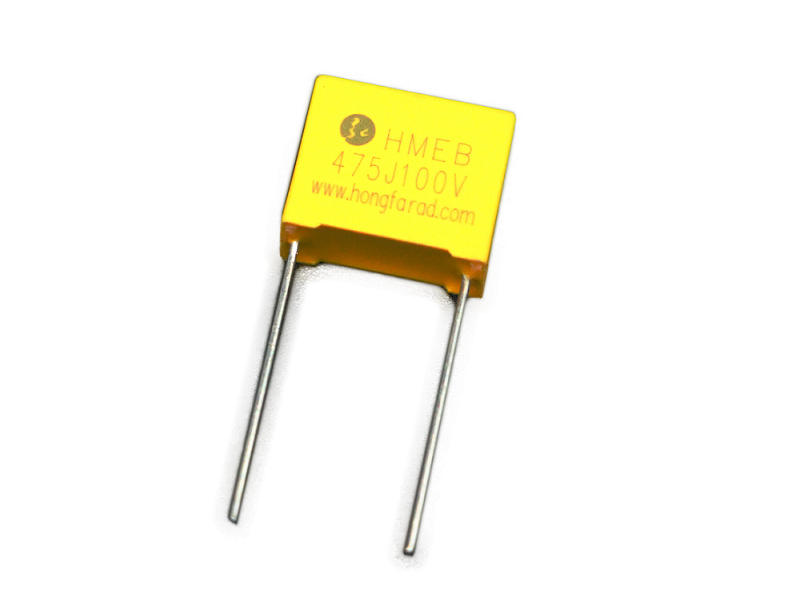

Features

1. High reliability
2. Metallized polyester film, non-inductive wound construction
3. Plastic case(UL94 V-0) , Epoxy resin sealing

Typical Applications

1. By-passing, blocking, coupling, decoupling

2. Pulse, logic, timing, oscillator, circuits

3. Interference suppression in low voltage application

Specifications

Reference Standard:      GB/T 7332(IEC 60384-2)

Climatic Category:         40/105/21

Rated Voltage :             100V,160V,250V,400V,630V

Capacitance Range:      0.001uf~10.0uf

Capacitance Tolerance: ±5%(J) , ±10%(K) , ±20%(M)

Voltage Proof :              1.6Ur(5s)

Dissipation Factor:         ≤1.0% (at 1KHz) ≤1.5% (at 10KHz) ≤3.0% (at 100KHz)

Insulation Resistance:   ≥90 000MΩ, Cr≤0.33uf

                                       ≥3 000s   Cr>0.33uf     (20ºC,100V,1 min)
