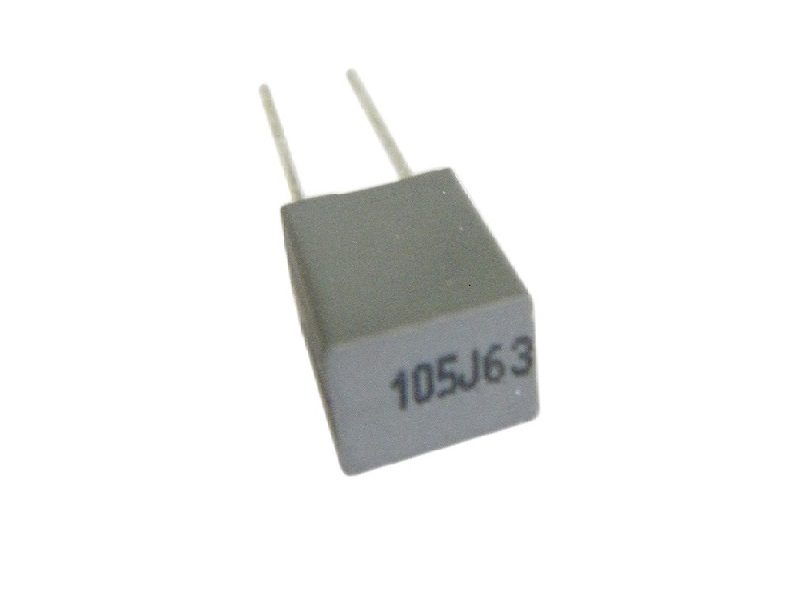

Product Descrption
Features
1.Metallized polyester film,stacked non-inductive wound construction
2.Plastic case (UL94 V-0),Epoxy resin sealing
3.High dv/dt ability
Typical Applications
1. By-passing, blocking, coupling, decoupling
2. Pulse logic, timing, oscillator, circuits
3. Invert for LCD monitors, automotive DC motor suppression
Specifications
Reference standard: GB 7332(IEC 60384-2)
Climatic Category: 40/105/21
Rated Temperature: 85ºC
Operating Temperature Range:-40ºC~105ºC (+85ºC to +105ºC:decreasing factor 1.25% per ºC for Vr(dc))
Rated Voltage: 63V,100V,250V,400V
Capacitance Range: 0.0010uf~1.0uf
Capacitance Tolerance: ±5%(J),±10%(K),±20%(M)
Voltage Proof:Pattern I :1.6Ur(5s), Pattern II:1.4Ur(5s)
