Features and Applications

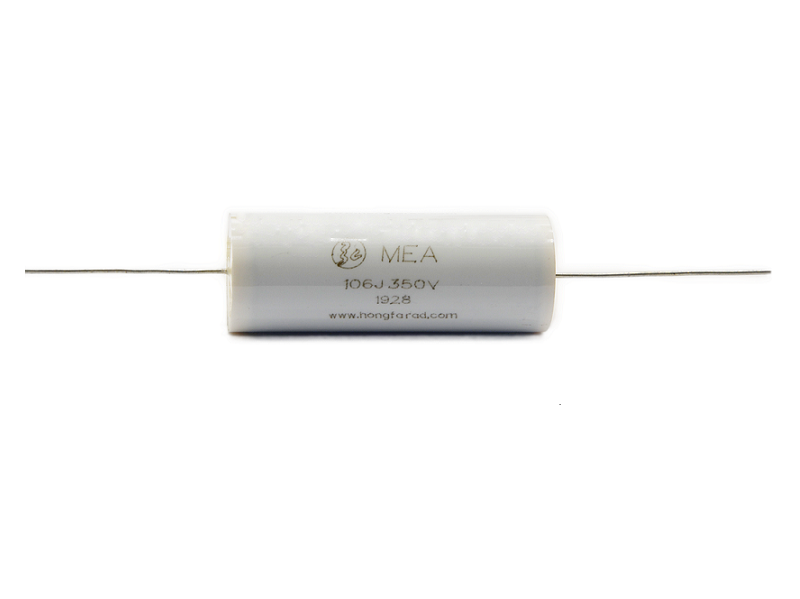

1.Metallized polyester film, non-inductive wound construction
2.Small size light weight, excellent self-healing property
3.Wrapped with polyester adhesive tape and ends filled with flame retardant epoxy resin

4. Suitable for blocking, by-pass, coupling, and decoupling

 Specifications

 Reference Standard:          GB/T 7332 (IEC 60384-2)

 Climatic Category:             40/105/21

 Rated Temperature:           85ºC

 Rated Voltage:                   50/63V, 100V,250V,400V,630V, 1000V

Capacitance Range:           0.001uf~10.0uf

Capacitance Tolerance :     ±5%(J) , ±10%(K) , ±20%(M)

Voltage Proof:                     1.6Ur(5s)

Dissipation Factor:              ≤1.0%(20ºC,1KHz

Insulation Resistance:        Ur≤100V,   ≥3 750MΩ, Cr≤0.33uf

                                                             ≥1 250s   Cr>0.33uf    (20ºC,10V,1 min)

                                           Ur>100V,  ≥30 000MΩ, Cr≤0.33uf

≥10 000s   Cr>0.33uf    (20ºC,100V,1 min)
