Features and Applications

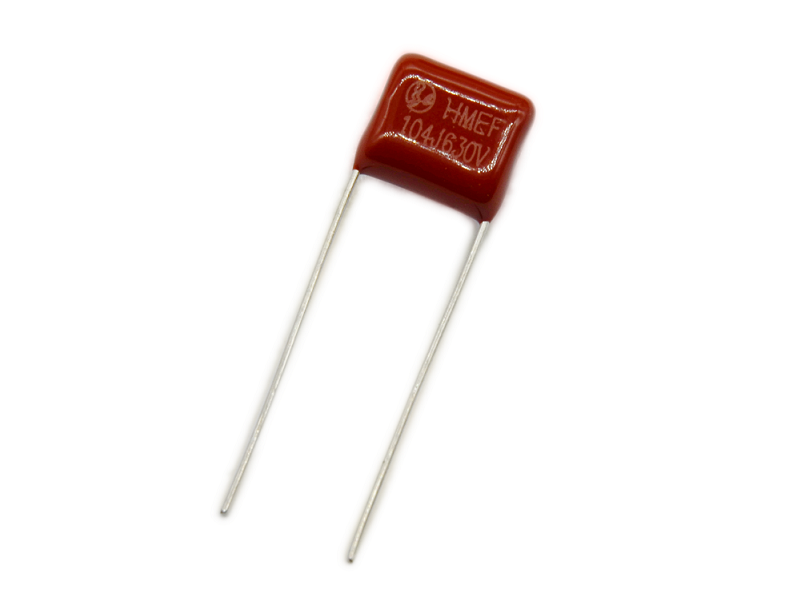

1.Metallized polyester film , non-inductive wound construction
2.Wide capacitance range , small size , and light weight
3.Long life due to self-healing effect
4.Flame retardation epoxy resin coating

5. Suitable for blocking, by-pass and coupling of DC and signals to VHF range

6. Widely used in filter and low pulse circuits

Specifications

 Reference Standard:          GB/T 7332 (IEC 60384-2)

Climatic Category:               40/105/21

  Rated Temperature:           85ºC

 Rated Voltage:                    50/63V, 100V,250V,400V,630V, 1000V,1250V

Capacitance Range:             0.01uf~10.0uf

Capacitance Tolerance:       ±5%(J) , ±10%(K)

Voltage Proof:                      1.6Ur(5s)

Dissipation Factor:                ≤1.0%(20ºC,1KHz)

Insulation Resistance :        Ur≤100V,  ≥3 750MΩ, Cr≤0.33uf

                                                              ≥1 250s   Cr>0.33uf    (20ºC,10V,1 min)

                                                 Ur>100V ,  ≥9 000MΩ, Cr≤0.33uf

                                                              ≥3 000s   Cr>0.33uf    (20ºC,100V,1 min)
